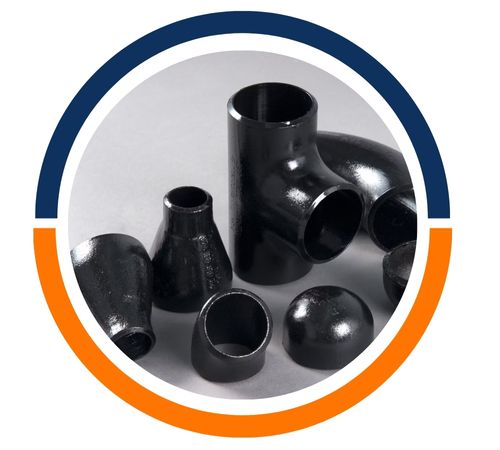

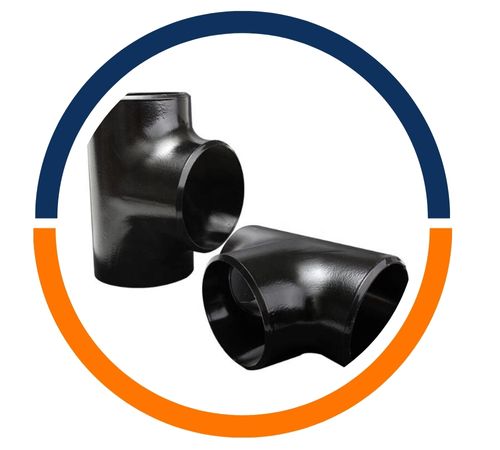

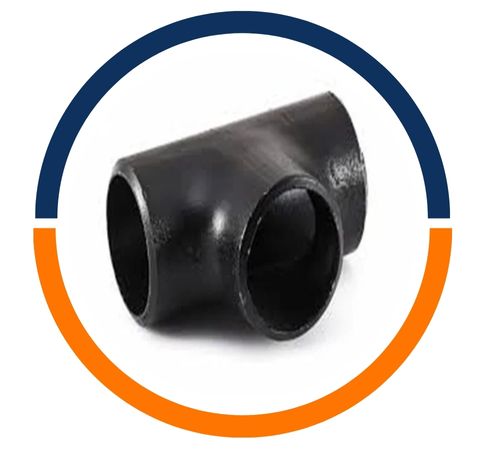

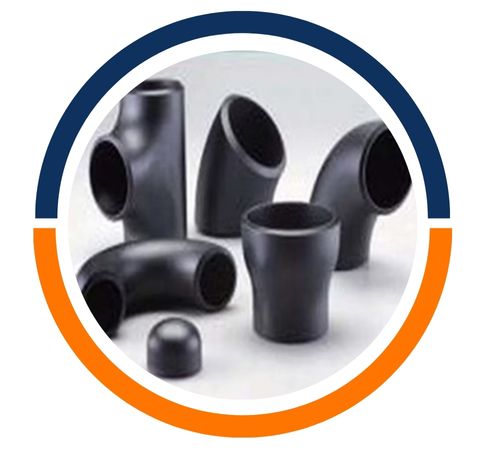

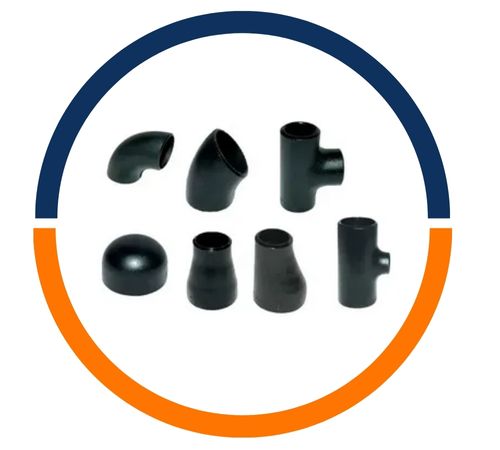

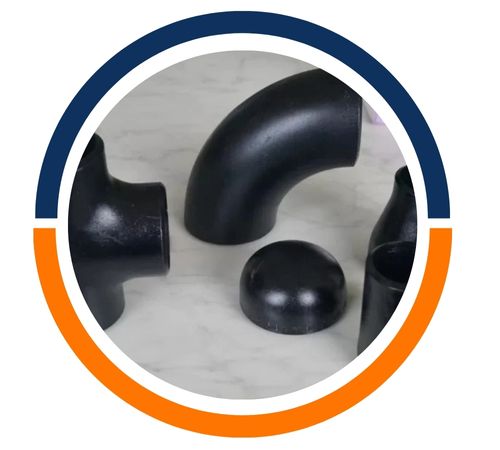

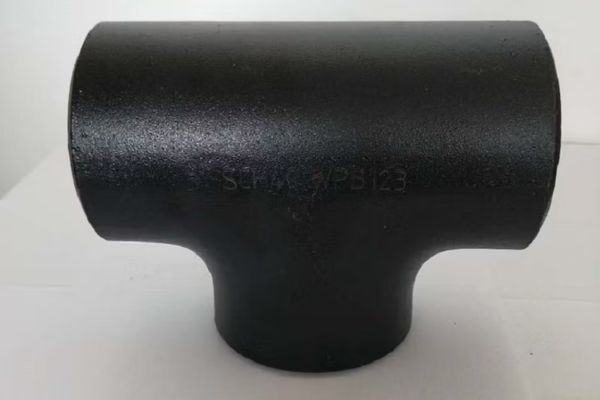

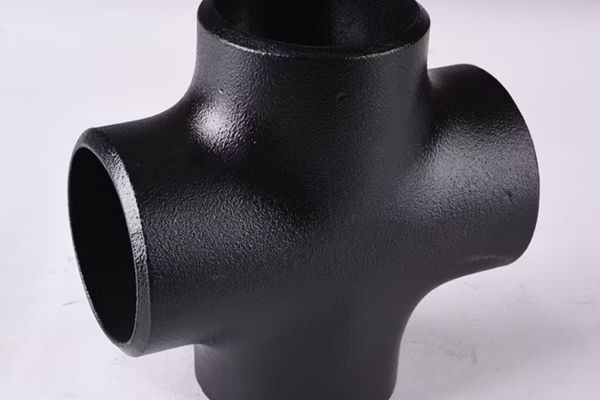

Aatir Steel, a prominent manufacturer and supplier located in Cairo, Egypt, focuses on crafting top-notch **Low Temperature Carbon Steel A420 WPL6 Pipe Fittings** that excel in cryogenic and low-temperature settings. These fittings are made using cutting-edge manufacturing methods and comply with rigorous international standards, ensuring they deliver outstanding toughness, durability, and resistance to corrosion. Aatir Steel’s A420 WPL6 Pipe Fittings are perfect for sectors like oil and gas, petrochemicals, power generation, and refrigeration, providing safe and reliable connections in pipelines and systems that function in sub-zero conditions while guaranteeing long-lasting performance and efficiency.
The **Low Temperature Carbon Steel A420 WPL6 Pipe Fittings** are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, striking a perfect balance between strength, ductility, and toughness. They boast impressive mechanical properties, such as high tensile and yield strength, excellent impact resistance, and good elongation even at low temperatures. Thanks to precision heat treatment and a fine-grain microstructure, these fittings offer enhanced weldability, dimensional stability, and long-term reliability in challenging low-temperature environments.
Specifications : ASTM A420 / ASME SA420
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Grades : A420 WPL3 / A420 WPL6
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A420 WPL6 | 0.3 | 0.60-1.35 | 0.15-0.30 | 0.04 | 0.035 | 0.3 | 0.12 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) |
| A420 WPL6 | 60-85[415-585] | 35[240] |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

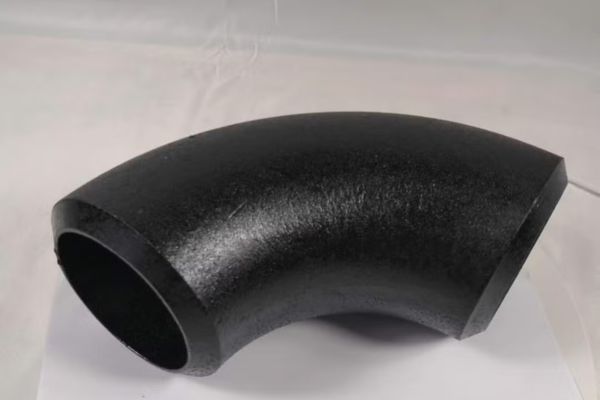

| Nom. Pipe Size | ASTM A420 Carbon Steel 90° Elbows | ASTM A420 Carbon Steel 45° Elbows | ASTM A420 Carbon Steel 180° Return Long Radius | |||||||||||
| Long Radius | Short Radius | 3R | Long Radius | 3R | STD | XS | ||||||||
| STD | XS | SCH. 160 | XXS | STD | XS | STD | XS | STD | XS | STD | XS | |||
| ½ | .18 | .25 | .09 | .19 | .35 | |||||||||
| ¾ | .19 | .25 | .09 | .19 | .40 | .65 | ||||||||
| 1 | .40 | .50 | .60 | .75 | .25 | 0.25 | .31 | .75 | 1.00 | |||||
| 1¼ | .60 | .90 | 1.00 | 1.38 | .4 | 0.38 | .50 | 1.25 | 1.75 | |||||
| 1½ | .90 | 1.15 | 1.80 | 1.50 | .56 | .75 | .40 | .69 | 1.88 | 2.39 | ||||
| 2 | 1.60 | 2.20 | 3.25 | 3.50 | 1.00 | 1.50 | 3.00 | 4.00 | .81 | 1.19 | 1.5 | 2.1 | 3.23 | 4.40 |
| 2½ | 3.25 | 4.00 | 5.13 | 7.00 | 2.13 | 2.80 | 6.00 | 8.00 | 1.75 | 2.13 | 3.00 | 4.00 | 6.50 | 8.00 |
| 3 | 5.00 | 6.50 | 8.50 | 11.0 | 3.00 | 4.25 | 10.0 | 13.0 | 2.63 | 3.50 | 5.00 | 7.00 | 10.25 | 13.00 |
| 3½ | 6.75 | 8.35 | 16.0 | 4.50 | 6.00 | 13.0 | 18.0 | 3.50 | 4.50 | 7.00 | 9.00 | 13.00 | 16.75 | |
| 4 | 9.00 | 13.5 | 18.0 | 20.0 | 6.25 | 8.50 | 18.0 | 25.0 | 4.50 | 6.10 | 9.00 | 13.0 | 18.5 | 25.0 |
| 5 | 15.0 | 22.0 | 32.0 | 36.0 | 9.60 | 14.0 | 29.0 | 43.0 | 7.50 | 10.7 | 15.0 | 22.0 | 30.0 | 44.0 |
| 6 | 24.5 | 35.0 | 57.0 | 65.0 | 18.0 | 23.0 | 45.0 | 70.0 | 12.0 | 17.5 | 23.0 | 35.0 | 50.0 | 70.0 |
| 8 | 50.0 | 71.0 | 120 | 118 | 34.0 | 47.5 | 90.0 | 140 | 23.0 | 35.0 | 45.0 | 70.0 | 95.0 | 142 |
| 10 | 88.0 | 107 | 260 | 58.0 | 70.0 | 159 | 218 | 43.0 | 53.0 | 80.0 | 109 | 117 | 215 | |
| 12 | 125 | 160 | 450 | 80.0 | 104 | 233 | 310 | 62.0 | 84.0 | 117 | 155 | 230 | 320 | |
| 14 | 160 | 205 | 572 | 105 | 140 | 298 | 400 | 80.0 | 100 | 149 | 200 | 325 | 400 | |
| 16 | 206 | 276 | 132 | 174 | 390 | 520 | 100 | 135 | 195 | 260 | 412 | 550 | ||
| 18 | 260 | 340 | 167 | 219 | 495 | 660 | 126 | 167 | 248 | 330 | 510 | 690 | ||
| 20 | 320 | 420 | 210 | 275 | 610 | 810 | 160 | 206 | 305 | 405 | 640 | 830 | ||
| 22 | 394 | 520 | 735 | 980 | 197 | 260 | 368 | 490 | 787 | 1040 | ||||
| 24 | 460 | 600 | 298 | 392 | 875 | 1170 | 238 | 300 | 438 | 585 | 890 | 1200 | ||
| 26 | 550 | 729 | 1030 | 1370 | 275 | 365 | 515 | 685 | ||||||
| 30 | 734 | 975 | 1370 | 1830 | 367 | 488 | 685 | 915 | ||||||
| 36 | 1062 | 1412 | 1970 | 2630 | 531 | 706 | 985 | 1315 | ||||||
Aatir Steel is a top manufacturer and supplier of high-quality Low Temperature Carbon Steel A420 WPL6 Pipe Fittings products in Cairo, Egypt. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find **Low Temperature Carbon Steel A420 WPL6 Pipe Fittings** commonly used in cryogenic pipelines, LNG processing facilities, refrigeration systems, and low-temperature storage tanks. They’re designed to connect pipes, valves, and pressure vessels in applications that involve transporting cold gases, fluids, and chemicals. Aatir Steel’s A420 WPL6 Pipe Fittings ensure leak-proof performance, high structural integrity, and a long service life, making them the go-to choice for industries that need trustworthy and safe low-temperature piping solutions.
