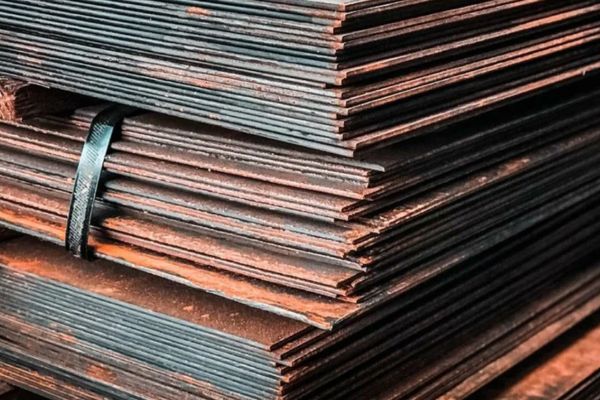

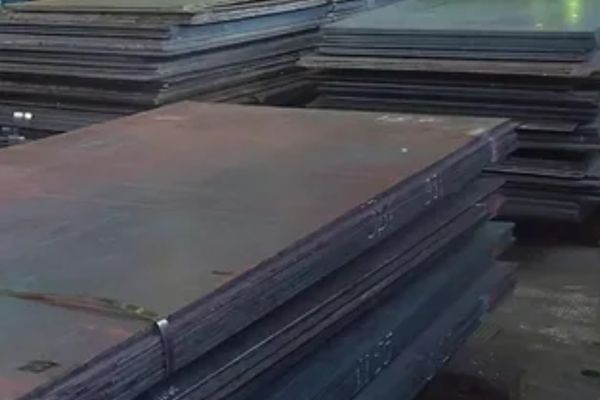

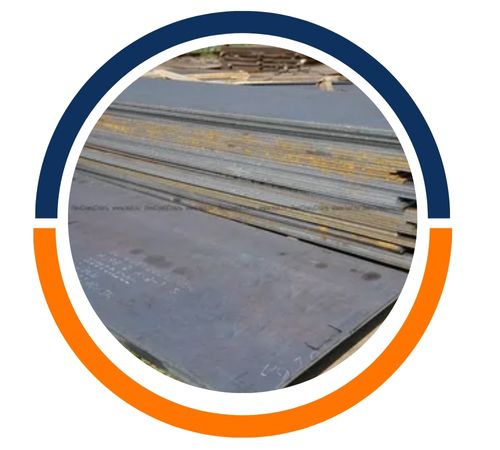

Aatir Steel in Cairo, Egypt, is a reputed supplier and manufacturer of high-quality IS 2062 E350 plates. With extensive industry experience spanning years, the company provides structural steel solutions of high strength that suit various industrial applications. With the reputation for quality, timely delivery, and technical assistance, Aatir Steel supplies to various industries such as construction, heavy machinery, and infrastructure. The organization employs superior manufacturing practices and follows rigorous quality control, guaranteeing that every IS 2062 E350 plate performs as expected in challenging applications, both regionally and globally. Aatir Steel remains the go-to collaborator for quality steel materials in Egypt.
IS 2062 E350 plates are produced from high-strength low alloy steel and are in accordance with the IS 2062 specification under grade E350. Chemical composition consists of up to 0.20% carbon and 1.55% manganese and limited sulfur and phosphorus levels. The plates have minimum yield strength of 350 MPa and tensile strength of 490–610 MPa, with good elongation and ductility properties. Mechanical properties provide high strength, weldability, and toughness, making them ideal for structural applications under heavy load-carrying conditions, such as harsh weather or corrosive environments.
| Item | Hot Rolled Medium and High Tensile Structural Steel – IS 2062 E350 |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | C | Mn | S | P | Si |
|---|---|---|---|---|---|
| IS 2062 E 350 | 0.20 | 1.50 | 0.045 | 0.045 | 0.45 |
| Grade | Yield strength N/mm2 | Tensile strength N/mm2 | Elongation (%) | ||
|---|---|---|---|---|---|
| ＜20mm | 20mm-40mm | ＞40mm | |||
| IS 2062 E350 | 350 | 330 | 320 | 490 | 22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aatir Steel is one of the most prominent manufacturers and suppliers of superior quality IS 2062 E350 Plates in Cairo, Egypt. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Length x Width | Mass per Sq m | Thickness | Length x Width | Mass per Sq m |
|---|---|---|---|---|---|
| mm | mm | Kg/m2 | mm | mm | Kg/m2 |
| 3 | 2500 x 1250 mm | 23.055 | 30.000 | 2500 x 1250 | 235.050 Kg/m2 |
| 3 | 3000 x 1500 mm | 23.055 | 30.000 | 3000 x 1500 | 235.050 Kg/m2 |
| 3 | 2000 x 1000 mm | 23.055 | 30.000 | 2000 x 1000 | 235.050 Kg/m2 |
| 3 | 3660 x 1830 mm | 23.055 | 30.000 | 4000 x 2000 | 235.050 Kg/m2 |
| 4 | 2000 x 1000 mm | 31.040 | 30.000 | 5000 x 2500 | 235.050 Kg/m2 |
| 3 | 4000 x 2000 mm | 23.055 | 30.000 | 5000 x 1250 | 235.050 Kg/m2 |
| 4 | 2500 x 1250 mm | 31.040 | 30.000 | 6000 x 2500 | 235.050 Kg/m2 |
| 4 | 3660 x 1830 mm | 31.040 | 32.000 | 2000 x 1000 | 251.020 Kg/m2 |
| 5 | 2000 x 1000 mm | 39.025 | 32.000 | 2500 x 1250 | 251.020 Kg/m2 |
| 5 | 4000 x 2000 mm | 39.025 | 35.000 | 4000 x 2000 | 274.075 Kg/m2 |
| 4 | 3000 x 1500 mm | 31.040 | 30.000 | 10000 x 2500 | 235.050 Kg/m2 |
| 5 | 2500 x 1250 mm | 39.025 | 32.000 | 3000 x 1500 | 251.020 Kg/m2 |
| 5 | 3660 x 1830 mm | 39.025 | 32.000 | 5000 x 2500 | 251.020 Kg/m2 |
| 5 | 4000 x 1750 mm | 39.025 | 35.000 | 2500 x 1250 | 274.075 Kg/m2 |
| 5 | 3000 x 1500 mm | 39.025 | 32.000 | 4000 x 2000 | 251.020 Kg/m2 |
| 5 | 6000 x 2000 mm | 39.025 | 40.000 | 2000 x 1000 | 314.000 Kg/m2 |
| 6 | 2500 x 1250 mm | 47.010 | 40.000 | 2500 x 1250 | 314.000 Kg/m2 |
| 6 | 3000 x 1500 mm | 47.010 | 40.000 | 3000 x 1500 | 314.000 Kg/m2 |
| 5 | 4000 x 1830 mm | 39.025 | 35.000 | 3000 x 1500 | 274.075 Kg/m2 |
| 6 | 3660 x 1830 mm | 47.010 | 40.000 | 4000 x 2000 | 314.000 Kg/m2 |
| 6 | 4000 x 1750 mm | 47.010 | 40.000 | 5000 x 2500 | 314.000 Kg/m2 |
| 6 | 3000 x 1525 mm | 47.010 | 40.000 | 4000 x 1750 | 314.000 Kg/m2 |
| 6 | 4000 x 1830 mm | 47.010 | 40.000 | 6000 x 2000 | 314.000 Kg/m2 |
| 6 | 6000 x 1500 mm | 47.010 | 45.000 | 2000 x 1000 | 353.025 Kg/m2 |
| 6 | 6000 x 1830 mm | 47.010 | 45.000 | 2500 x 1250 | 353.025 Kg/m2 |
| 6 | 4000 x 2000 mm | 47.010 | 40.000 | 7500 x 2500 | 314.000 Kg/m2 |
| 6 | 6000 x 2000 mm | 47.010 | 45.000 | 2500 x 1500 | 353.025 Kg/m2 |
| 6 | 8000 x 2000 | 47.010 | 45.000 | 4000 x 2000 | 353.025 |
| 6 | 8000 x 2500 | 47.010 | 45.000 | 5000 x 2500 | 353.025 |
| 6 | 6000 x 2500 mm | 47.010 | 45.000 | 3000 x 1500 | 353.025 Kg/m2 |
| 8 | 2000 x 1000 | 62.080 | 50.000 | 2000 x 1000 | 392.050 |
| 8 | 3000 x 1500 | 62.080 | 50.000 | 3000 x 1500 | 392.050 |
| 8 | 3660 x 1830 | 62.080 | 50.000 | 4000 x 2000 | 392.050 |
| 8 | 4000 x 2000 | 62.080 | 50.000 | 5000 x 2500 | 392.050 |
| 8 | 2500 x 1250 | 62.080 | 50.000 | 2500 x 1250 | 392.050 |
| 8 | 5000 x 2500 | 62.080 | 50.000 | 6000 x 2000 | 392.050 |
| 8 | 6000 x 2000 | 62.080 | 60.000 | 2000 x 1000 | 471.000 |
| 8 | 6000 x 1500 | 62.080 | 50.000 | 8000 x 2500 | 392.050 |
| 8 | 8000 x 2000 | 62.080 | 60.000 | 2500 x 1250 | 471.000 |
| 10 | 2500 x 1250 | 78.050 | 60.000 | 4000 x 2000 | 471.000 |
| 10 | 3000 x 1500 | 78.050 | 60.000 | 5000 x 2500 | 471.000 |
| 10 | 2000 x 1000 | 78.050 | 60.000 | 3000 x 1500 | 471.000 |
| 10 | 4000 x 1750 | 78.050 | 65.000 | 2000 x 1000 | 510.025 |
| 10 | 6000 x 1500 | 78.050 | 65.000 | 3000 x 1500 | 510.025 |
| 10 | 6000 x 2000 | 78.050 | 65.000 | 4000 x 2000 | 510.025 |
| 10 | 6000 x 2500 | 78.050 | 65.000 | 5000 x 2500 | 510.025 |
| 10 | 5000 x 2500 | 78.050 | 65.000 | 2500 x 1250 | 510.025 |
| 10 | 10000 x 2000 | 78.050 | 70.000 | 2000 x 1000 | 549.05 |
| 10 | 10000 x 2500 | 78.050 | 70.000 | 2500 x 1250 | 549.05 |
| 12 | 4000 x 2000 | 94.020 | 70.000 | 4000 x 2000 | 549.05 |
| 12 | 6000 x 2000 | 94.020 | 70.000 | 5000 x 2500 | 549.05 |
| 12 | 6000 x 2500 | 94.020 | 75.000 | 2000 x 1000 | 588.075 |
| 12 | 2000 x 1000 | 94.020 | 70.000 | 3000 x 1500 | 549.05 |
| 12.05 | 2000 x 1000 | 98.013 | 75.000 | 2500 x 1250 | 588.075 |
| 12.05 | 2500 x 1250 | 98.013 | 75.000 | 3000 x 1500 | 588.075 |
| 12.05 | 3050 x 1525 | 98.013 | 75.000 | 5000 x 2500 | 588.075 |
| 12.05 | 4000 x 1750 | 98.013 | 80.000 | 2000 x 1000 | 628.000 |
| 12.05 | 4000 x 2000 | 98.013 | 80.000 | 2500 x 1250 | 628.000 |
| 12.05 | 5000 x 2500 | 98.013 | 80.000 | 3000 x 1500 | 628.000 |
| 12.05 | 6000 x 1500 | 98.013 | 80.000 | 4000 x 2000 | 628.000 |
| 12.05 | 6000 x 2000 | 98.013 | 90.000 | 2000 x 1000 | 706.05 |
| 12.05 | 3000 x 1500 | 98.013 | 75.000 | 4000 x 2000 | 588.075 |
| 12.05 | 6000 x 2500 | 98.013 | 90.000 | 2500 x 1250 | 706.05 |
| 15 | 2500 x 1250 | 117.075 | 90.000 | 4000 x 2000 | 706.05 |
| 15 | 3000 x 1500 | 117.075 | 90.000 | 5000 x 2000 | 706.05 |
| 15 | 2000 x 1000 | 117.075 | 90.000 | 3000 x 1500 | 706.05 |
| 20 | 2500 x 1250 | 157.000 | 110.000 | 2000 x 1000 | 863.050 |
| 15 | 4000 x 1750 | 117.075 | 100.000 | 2000 x 1000 | 785.000 |
| 15 | 4000 x 2500 | 117.075 | 100.000 | 3000 x 1500 | 785.000 |
| 15 | 5000 x 2500 | 117.075 | 100.000 | 4000 x 2000 | 785.000 |
| 15 | 4000 x 2000 | 117.075 | 100.000 | 2500 x 1250 | 785.000 |
| 15 | 6000 x 2500 | 117.075 | 100.000 | 5000 x 2500 | 785.000 |
| 20 | 3000 x 1500 | 157.000 | 110.000 | 2500 x 1250 | 863.050 |
| weight | Thickness |
|---|---|
| （kg/m²） | （mm） |
| 2.75 kg/m² | 0.35 mm |
| 1.96 kg/m² | 0.25 mm |
| 2.36 kg/m² | 0.3 mm |
| 1.57 kg/m² | 0.2 mm |
| 7.85 kg/m² | 1 mm |
| 3.53 kg/m² | 0.45 mm |
| 4.32 kg/m² | 0.55 mm |
| 3.14 kg/m² | 0.4 mm |
| 3.93 kg/m² | 0.5 mm |
| 4.71 kg/m² | 0.6 mm |
| 5.1 kg/m² | 0.65 mm |
| 8.64 kg/m² | 1.1 mm |
| 5.89 kg/m² | 0.75 mm |
| 5.5 kg/m² | 0.7 mm |
| 7.07 kg/m² | 0.9 mm |
| 6.28 kg/m² | 0.8 mm |
IS 2062 E350 plates find extensive application in structural engineering and industrial fabrication works. In the construction industry, they are utilized in the construction of bridges, flyovers, and multi-story buildings because of high-bearing capacity. In manufacturing and engineering, they are utilized for fabricating heavy-duty machinery, cranes, pressure vessels, and frames. The plates can also be utilized in shipbuilding, wind tower structures, and railway wagons. Their strong strength-to-weight ratio and weldability provide them with the highest potential for suitability in applications demanding both toughness and ready processability, promoting efficiency and structural performance.
