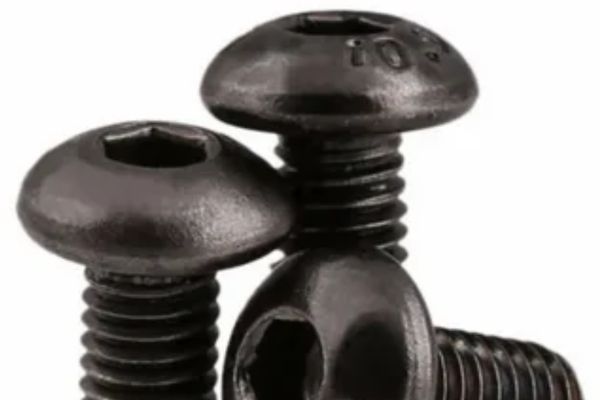

Aatir Steel stands out as a top-notch manufacturer and supplier of Carbon Steel Screws, proudly based in Cairo, Egypt. With a strong focus on quality and precision, this company offers robust and high-performance fastening solutions tailored for a variety of industrial and commercial needs. Their Carbon Steel Screws are crafted using cutting-edge technology, ensuring they boast superior strength, corrosion resistance, and dependable performance. Aatir Steel caters to diverse sectors, including construction, automotive, machinery, and manufacturing, delivering screws that adhere to international standards. These products are engineered for secure fastening, long-lasting durability, and optimal mechanical performance, even in challenging environments.
When it comes to composition, Carbon Steel Screws primarily consist of iron with a carefully controlled carbon content, usually between 0.30% and 0.60%, along with trace amounts of manganese, sulfur, and phosphorus. This blend results in impressive tensile strength, hardness, and durability while still allowing for good machinability. The mechanical properties of these screws include outstanding shear and pull-out strength, resistance to deformation, and wear resistance. Such features guarantee reliable fastening in situations that demand secure joints under mechanical stress or vibration.
Specification : ASTM F568 / ASME SF568
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length : 3 mm to 200 mm

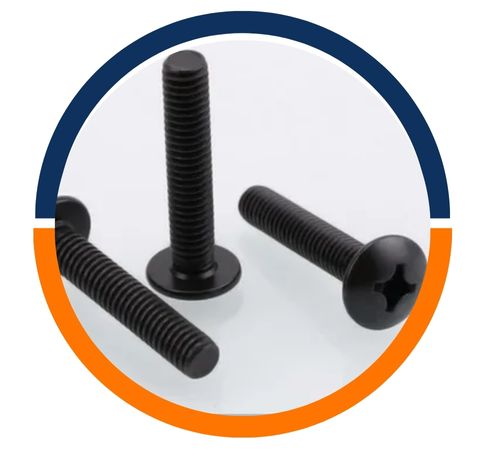

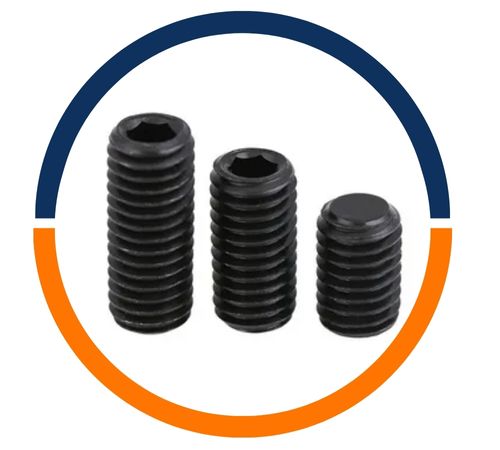

Type : Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Screw in Cairo, Egypt. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Screw needs!
| Screw Nom. Size Thread Pitch | Body Diameter D | Head Diameter A | Head Height H | Chamfer or Radius S | Hexagon Socket Size J | Spline Socket Sizea M | Key Engagement T | Transition Dia. B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Nom. | Nom. | Min | Max | |
| M1.6 × 0.35 | 1.60 | 1.46 | 3.00 | 2.87 | 1.60 | 1.52 | 0.16 | 1.5 | 1.829 | 0.80 | 2.0 |
| M2 × 0.4 | 2.00 | 1.86 | 3.80 | 3.65 | 2.00 | 1.91 | 0.20 | 1.5 | 1.829 | 1.00 | 2.6 |
| M2.5 × 0.45 | 2.50 | 2.36 | 4.50 | 4.33 | 2.50 | 2.40 | 0.25 | 2.0 | 2.438 | 1.25 | 3.1 |
| M3 × 0.5 | 3.00 | 2.86 | 5.50 | 5.32 | 3.00 | 2.89 | 0.30 | 2.5 | 2.819 | 1.50 | 3.6 |
| M4 × 0.7 | 4.00 | 3.82 | 7.00 | 6.80 | 4.00 | 3.88 | 0.40 | 3.0 | 3.378 | 2.00 | 4.7 |
| M5 × 0.8 | 5.00 | 4.82 | 8.50 | 8.27 | 5.00 | 4.86 | 0.50 | 4.0 | 4.648 | 2.50 | 5.7 |
| M6 × 1 | 6.00 | 5.82 | 10.00 | 9.74 | 6.00 | 5.85 | 0.60 | 5.0 | 5.486 | 3.00 | 6.8 |
| M8 × 1.25 | 8.00 | 7.78 | 13.00 | 12.70 | 8.00 | 7.83 | 0.80 | 6.0 | 7.391 | 4.00 | 9.2 |
| M10 × 1.5 | 10.00 | 9.78 | 16.00 | 15.67 | 10.00 | 9.81 | 1.00 | 8.0 | … | 5.00 | 11.2 |
| M12 × 1.75 | 12.00 | 11.73 | 18.00 | 17.63 | 12.00 | 11.79 | 1.20 | 10.0 | … | 6.00 | 14.2 |
| M14 × 2b | 14.00 | 13.73 | 21.00 | 20.60 | 14.00 | 13.77 | 1.40 | 12.0 | … | 7.00 | 16.2 |
| M16 × 2 | 16.00 | 15.73 | 24.00 | 23.58 | 16.00 | 15.76 | 1.60 | 14.0 | … | 8.00 | 18.2 |
| M20 × 2.5 | 20.00 | 19.67 | 30.00 | 29.53 | 20.00 | 19.73 | 2.00 | 17.0 | … | 10.00 | 22.4 |
| M24 × 3 | 24.00 | 23.67 | 36.00 | 35.48 | 24.00 | 23.70 | 2.40 | 19.0 | … | 12.00 | 26.4 |
| M30 × 3.5 | 30.00 | 29.67 | 45.00 | 44.42 | 30.00 | 29.67 | 3.00 | 22.0 | … | 15.00 | 33.4 |
| M36 × 4 | 36.00 | 35.61 | 54.00 | 53.37 | 36.00 | 35.64 | 3.60 | 27.0 | … | 18.00 | 39.4 |
| M42 × 4.5 | 42.00 | 41.61 | 63.00 | 62.31 | 42.00 | 41.61 | 4.20 | 32.0 | … | 21.00 | 45.6 |
| M48 × 5 | 48.00 | 47.61 | 72.00 | 71.27 | 48.00 | 47.58 | 4.80 | 36.0 | … | 24.00 | 52.6 |
| Screw Size | Body Dia | Hex Key Size | Head Height | Head Dia | Maximum Thread Length | Minimum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 0.05 | 0.06 | 0.096 | 5/8 | 3/8 |
| No. 1 | 0.073 | 1/16 | 0.073 | 0.118 | 7/8 | 3/8 |
| No. 2 | 0.086 | 5/64 | 0.086 | 0.14 | 7/8 | 1/2 |
| No. 3 | 0.099 | 5/64 | 0.099 | 0.161 | 7/8 | 1/2 |
| No. 4 | 0.112 | 3/32 | 0.112 | 0.183 | 11/8 | 11/16 |
| No. 5 | 0.125 | 3/32 | 0.125 | 0.205 | 1 | 11/16 |
| No. 6 | 0.138 | 7/64 | 0.138 | 0.226 | 11/8 | 11/16 |
| No. 8 | 0.164 | 9/64 | 0.164 | 0.27 | 11/4 | 3/4 |
| No. 10 | 0.19 | 5/32 | 0.19 | 0.312 | 13/8 | 15/16 |
| No. 12 | 0.216 | 5/32 | 0.216 | 0.345 | 11/4 | 15/16 |
| 1/4 | 0.250 | 3/16 | 1/4 | 3/8 | 11/2 | 15/16 |
| 5/16 | 0.3125 | 1/4 | 5/16 | 15/32 | 1-3/4 | 1-1/16 |
| 3/8 | 0.375 | 5/16 | 3/8 | 9/16 | 2 | 1-3/16 |
| 7/16 | 0.438 | 3/8 | 7/16 | 21/32 | 2-1/4 | 13/16 |
| 1/2 | 0.500 | 3/8 | 1/2 | 3/4 | 2-1/2 | 1-3/8 |
| 9/16 | 0.5625 | 7/16 | 9/16 | 27/32 | 2-7/16 | 1-5/8 |
| 5/8 | 0.625 | 1/2 | 5/8 | 15/16 | 3 | 1-5/8 |
| 3/4 | 0.750 | 5/8 | 3/4 | 11/8 | 3-1/2 | 1-7/8 |
| 7/8 | 0.875 | 3/4 | 7/8 | 15/16 | 3-3/4 | 2-1/16 |
| 1 | 1.000 | 3/4 | 1 | 11/2 | 4-1/2 | 2-1/4 |
| 1-1/8 | 1.125 | 7/8 | 1-1/8 | 111/16 | 4-21/32 | 2-13/16 |
| 1-1/4 | 1.250 | 7/8 | 1-1/4 | 17/8 | 5-3/32 | 3-1/8 |
| 1-1/2 | 1.500 | 1 | 1-1/2 | 21/4 | 6-5/64 | 3-3/4 |
| 1-3/4 | 1.750 | 11/4 | 1-3/4 | 25/8 | 7-1/8 | 4-3/8 |
| 2 | 2.000 | 11/2 | 2 | 3 | 8-7/64 | 5 |
Carbon Steel Screws find their place in a wide array of applications, from construction and machinery to automotive and industrial equipment. They excel at fastening metal, wood, and composite materials, creating secure and long-lasting joints. In the automotive industry, you’ll find them in engine components, chassis assemblies, and various mechanical parts. In construction and manufacturing, they play a crucial role in structural frameworks, machinery assembly, furniture, and equipment installation. Thanks to their remarkable strength, wear resistance, and versatility, these screws are perfect for both heavy-duty tasks and everyday use, ensuring lasting performance and structural integrity across various industrial and commercial settings.
Aatir Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cairo, Egypt.
