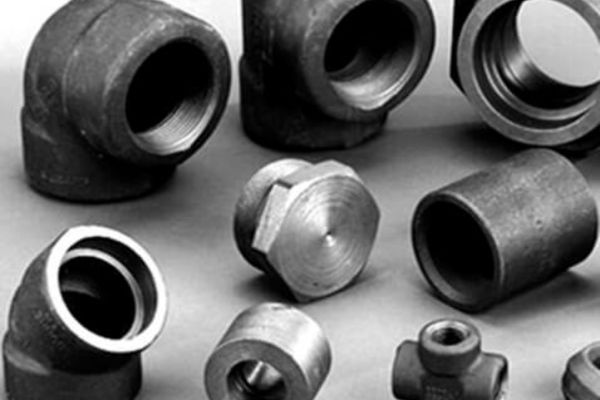

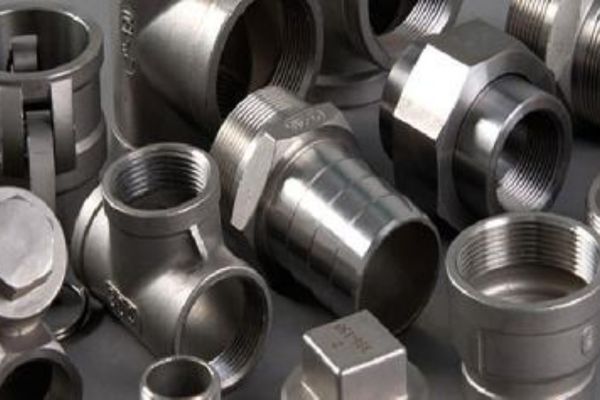

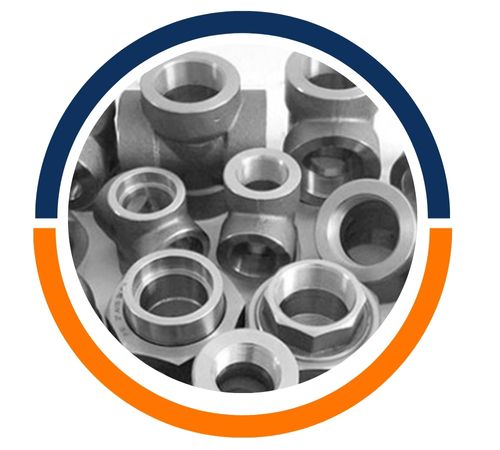

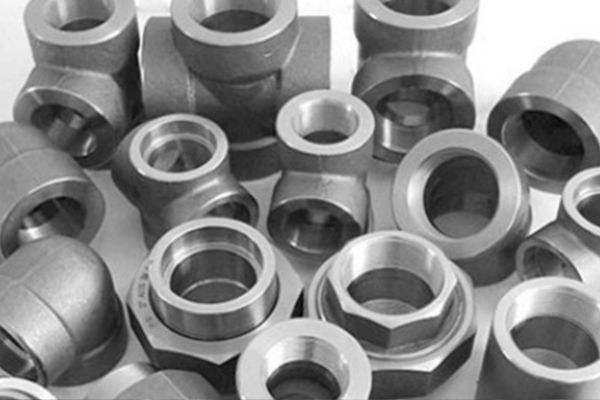

Aatir Steel stands out as a top-notch manufacturer and supplier of Carbon Steel Forged Socket Weld Pipe Fittings, proudly based in Cairo, Egypt. The company is all about crafting high-quality forged fittings that ensure reliable, leak-proof connections in high-pressure piping systems. Using only premium-grade carbon steel and cutting-edge forging techniques, Aatir Steel guarantees superior strength, durability, and precise dimensions. Their socket weld fittings are perfect for industries like oil and gas, petrochemical, power generation, and marine engineering, delivering secure and efficient connections in critical piping applications where performance and safety are non-negotiable.
When it comes to production, these Carbon Steel Forged Socket Weld Pipe Fittings meet the rigorous ASTM A105/A182/A694 standards. They contain Carbon (≤0.30%), Manganese (≤1.60%), Phosphorus (≤0.035%), Sulfur (≤0.040%), and Silicon (≤0.35%). This specific composition boosts tensile strength, hardness, and wear resistance while ensuring excellent weldability and machinability. With a minimum tensile strength of 485 MPa and a yield strength ranging from 250 to 345 MPa, these fittings are built to perform reliably under high pressure and temperature, all while offering exceptional impact resistance.
| Specifications | ASTM A105 | A350 LF2 | A694 | A350 LF3 |
|---|---|
| Size Ranges | 1/8 inch – 4 inch (DN6~DN100) |
| Pressure Classes | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type of Forged | NPT, BSP, BSPT Fittings |
| Dimension Standard | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Type of Connection | Welding |
| Element | Composition %, Note C |
|---|---|
| Copper | .40 max, note A |
| Carbon | .35 max |
| Silicon | .10-35 |
| Manganese | .60-1.05 |
| Chromium | .30 max, note A,B |
| Phosphorus | .035 max |
| Molybdenum | .12 max, note A,B |
| Sulfur | .040 max |
| Nickel | .40 max, note A |
| Vanadium | .08 max, note A |
| Property | |
|---|---|
| Reduction of area, min: | 30% min |
| Tensile Strength, min: | 70,000 psi (485 MPa] |
| Min. Yield Point: | 36,000 psi [250 MPa] |
| Hardness, HB, max | 187 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aatir Steel is a top manufacturer and supplier of high-quality Carbon Steel Forged Socket Weld Pipe Fittings products in Cairo, Egypt. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These fittings are widely utilized to connect pipelines, valves, pumps, and other equipment within industrial piping networks. They shine in high-pressure, high-temperature, and corrosive environments, guaranteeing leak-proof joints and safe fluid flow. Commonly found in oil refineries, petrochemical plants, power generation units, chemical industries, and water treatment facilities, Aatir Steel’s Carbon Steel Forged Socket Weld Pipe Fittings promise long-lasting durability, operational efficiency, and structural integrity in critical industrial applications.
