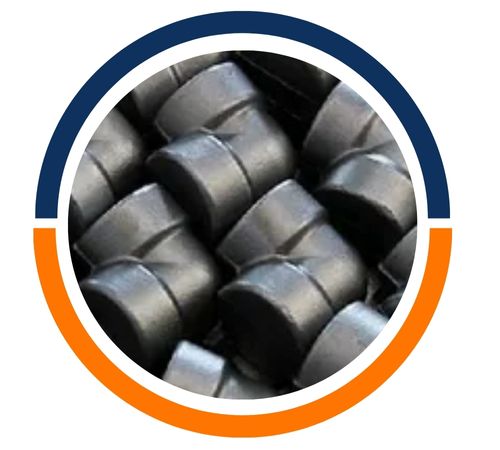

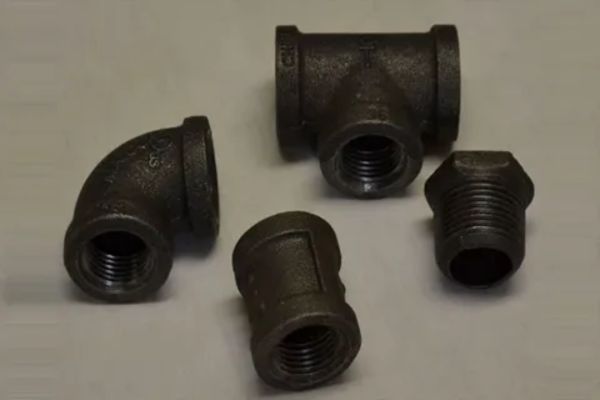

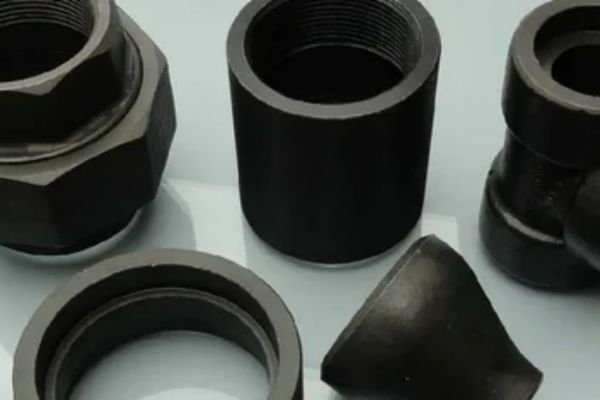

Aatir Steel, a reputable manufacturer and supplier located in Cairo, Egypt, proudly presents its top-notch range of Carbon Steel F80 Forged Fittings, crafted for outstanding performance in high-pressure piping systems. These fittings are made in line with ASTM and ASME standards, ensuring they boast impressive strength, precise threading, and excellent resistance to corrosion and wear. Perfect for industries that need leak-proof, durable, and high-performance connections, Aatir Steel’s F80 Forged Fittings are produced using advanced forging technology and rigorous quality checks, guaranteeing each fitting offers reliability, dimensional accuracy, and longevity for critical applications in the oil, gas, and power sectors.
The Carbon Steel F80 Forged Fittings are mainly made of iron, containing about 0.30% carbon, 0.60–1.65% manganese, 0.40% silicon, along with trace amounts of sulfur and phosphorus. This specific blend gives them remarkable strength and toughness. With a tensile strength of around 485 MPa and a yield strength of 275 MPa, these fittings provide excellent mechanical stability even under high pressure. They also exhibit good ductility, hardness, and machinability, making them ideal for welding and threading. The well-balanced chemical composition ensures they are durable, resistant to deformation, and perform reliably in demanding industrial settings.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

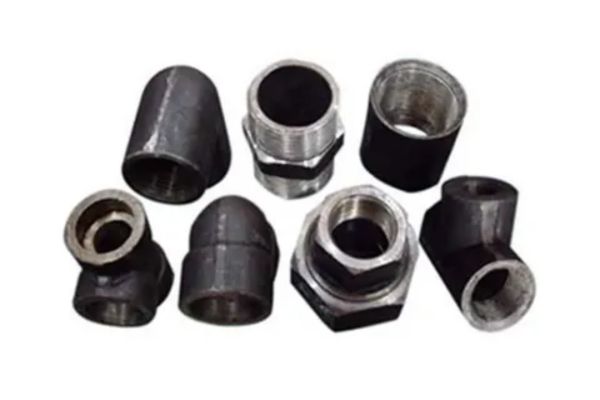

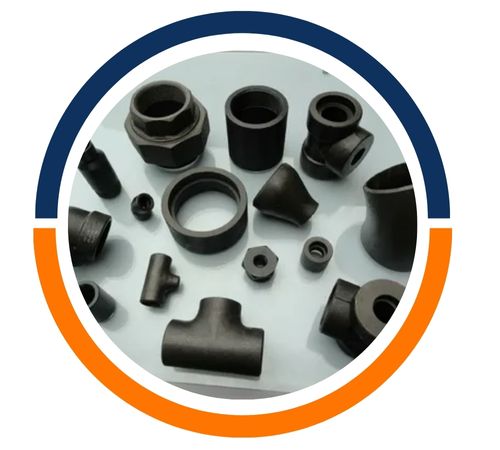

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F80 | 0.17-0.23 | 0.15-0.40 | 1.30-1.60 | ≤ 0.025 | ≤ 0.015 | 0.45-0.65 | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | – | 0.025~0.050 |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 65 | 77 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

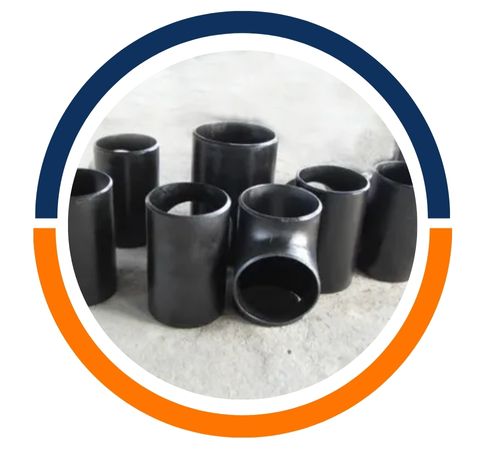

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F80 Forged Screwed Elbows, Street Elbow, Carbon Steel F80 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F80 Reducing Coupling, Carbon Steel F80 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F80 Threaded Bushing, Carbon Steel F65 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F80 Barrel Nipples, CS F80 Forged Threaded Boss, Carbon Steel F80 Forged Hex Head Bull Plugs |

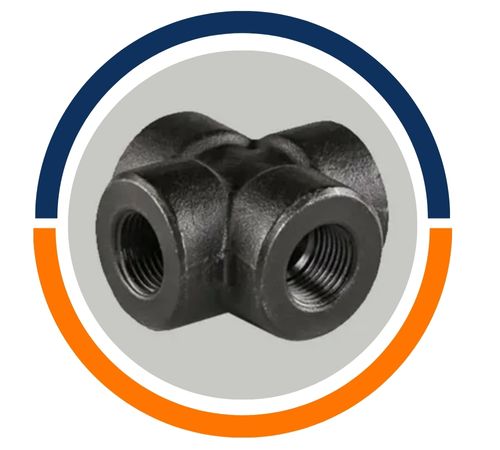

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F80 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F80 caps, 3000LB Socket Weld Cross |

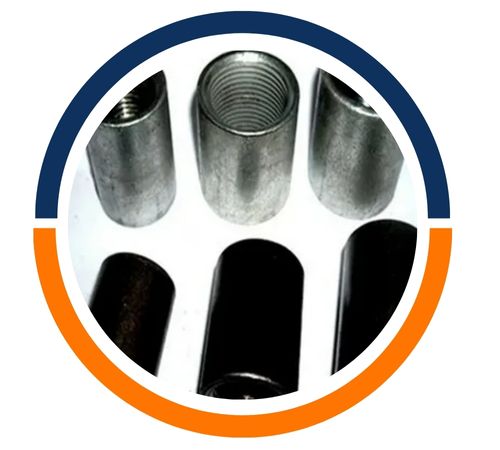

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F80 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F80 Coupling |

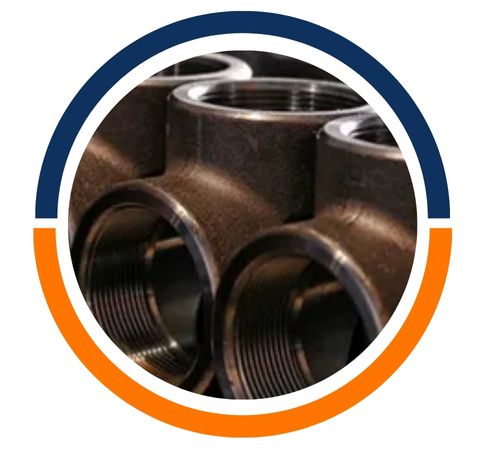

Aatir Steel’s Carbon Steel F80 Forged Fittings find extensive use in industries that require high strength and pressure resistance. They are crucial components in oil and gas pipelines, petrochemical plants, refineries, and power generation systems. These fittings play a vital role in connecting, controlling, and directing the flow of fluids or gases in various piping networks. Their sturdy construction makes them suitable for both high-temperature and cryogenic environments. Common applications include hydraulic systems, offshore drilling rigs, steam lines, and mechanical assemblies. Aatir Steel’s forged fittings are designed to meet the rigorous demands of these industries.
Aatir Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cairo, Egypt.
