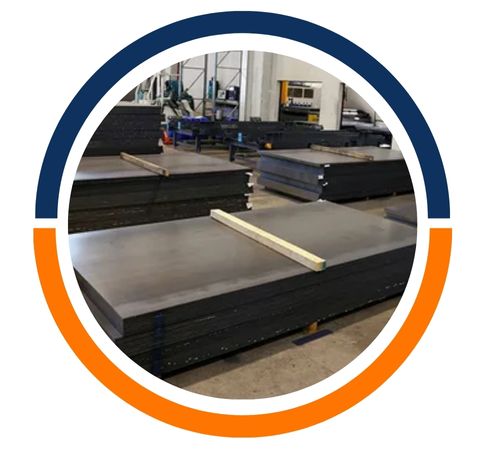

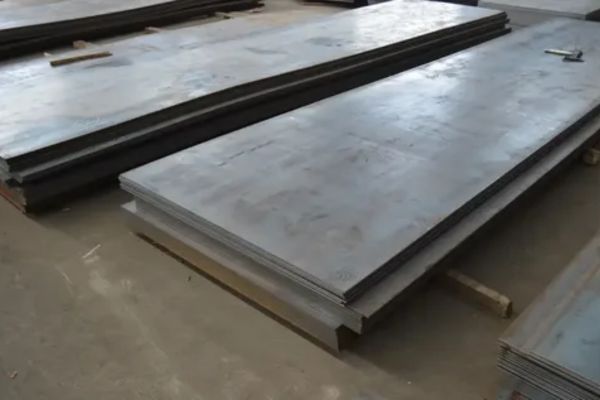

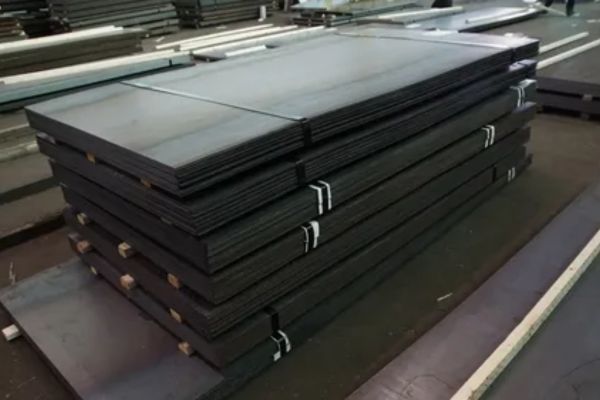

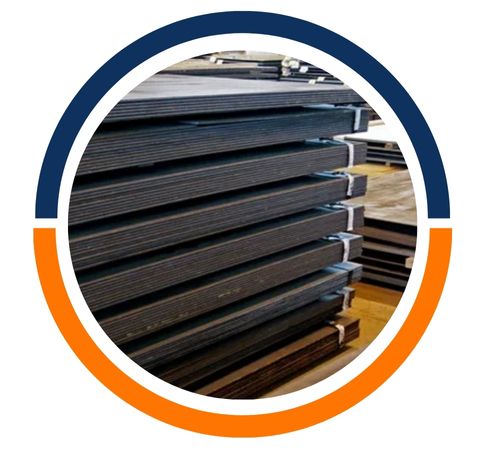

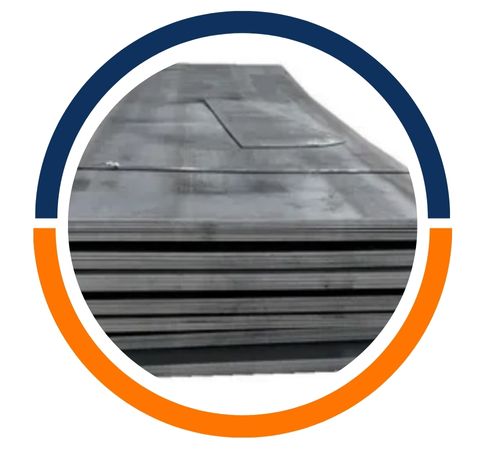

Tanvir Nickel Alloys, located in Cairo, Egypt, is a reputable manufacturer and supplier of Carbon Steel API 5L X42 Sheets and Plates. These products are specifically crafted for pipeline construction and structural applications, especially in the oil and gas, petrochemical, and energy industries. Adhering to API 5L specifications, X42 sheets and plates boast excellent weldability, strength, and stress resistance. Tanvir Nickel Alloys ensures that their products meet international standards, providing high-performance materials suitable for both onshore and offshore environments, all while maintaining strict quality control, competitive pricing, and prompt delivery to both local and global markets.
The composition of Carbon Steel API 5L X42 Sheets and Plates primarily includes carbon, manganese, phosphorus, and sulfur, along with trace alloying elements tailored to achieve the desired toughness and strength. With a minimum yield strength of 290 MPa and a tensile strength ranging from 415 to 560 MPa, X42 grade materials strike a reliable balance between formability and durability. These plates come in various thicknesses and dimensions, available in both hot-rolled and cold-rolled conditions. Their consistent structure and precise dimensions make them perfect for pressure-containing systems and load-bearing applications where performance under stress is crucial.
| Standard | API |
|---|---|
| Specification | API 5L GR. X42 |
| Width | 1000mm – 3000mm |
| Thickness | 1mm – 300mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Grades | Material number | C max | Si max | Mn. mix | P max | S max |
| X42 | 1.0484 | 0.22 | 0.45 | 0.50-1.10 | 0.04 | 0.035 |
| Grade | Permissible yield point ratio | Yield Strength MPa(min) | Tensile Strength MPa | Elongation % (min) |
| X42 | ≤ 0.85 | 290 | 420 – 540 | 23 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
API 5L X42 Sheets and Plates are extensively utilized in constructing pipelines for transporting oil, natural gas, and water, as well as in pressure vessels, storage tanks, structural supports, and the fabrication of heavy-duty components. Their capability to endure harsh environments and high-pressure conditions makes them ideal for both above-ground and buried pipeline installations. Tanvir Nickel Alloys also offers customized sizes, edge finishes, and surface treatments to meet specific project requirements.
CS API 5L X42 Sheets and Plates find extensive application in pipeline transportation of oil, gas, and water because of their high strength and corrosion resistance. They are used in structural applications, pressure vessels and offshore operations, providing long-lasting durability in harsh environments. The oil and gas, petrochemical, power generation, construction and marine industries utilize these plates extensively. Their toughness and weldability make them a perfect choice for high-temperature and high-pressure applications.
