Aatir Steel is a reputable manufacturer and supplier of Carbon Steel A671 Gr CC 70 Pipes, proudly based in Cairo, Egypt. The company focuses on crafting top-notch carbon steel pipes designed for high-pressure, high-temperature, and industrial applications. These pipes are made from premium-grade carbon steel and undergo rigorous quality control, ensuring they deliver outstanding dimensional accuracy, mechanical strength, and durability. Aatir Steel’s A671 Gr CC 70 Pipes meet international standards, making them perfect for use in petrochemical plants, power generation units, refineries, and other industries that demand strong and reliable piping systems.

Carbon Steel A671 Gr CC 70 Pipes Size Chart, ASME SA 672 Gr CC 70 Pipes Price in Port Said, Carbon Steel A671 Gr CC 70 Pipes Weight Chart, Carbon Steel A671 Gr CC 70 Pipes Thickness, ASTM A671 Gr CC 70 Pipes Supplier in Egypt, Carbon Steel A671 Gr CC 70 Pipes Exporter in Egypt, Carbon Steel A671 Gr CC 70 Pipes Price List in Cairo, ASTM A671 Gr CC 70 Pipes Supplier in Cairo, Carbon Steel A671 Gr CC 70 Pipes Exporter in West Cairo, CS A671 Gr CC 70 Pipes Exporter in Alexandria

CS A671 Gr CC 70 Seamless Pipes

Carbon Steel A671 Gr CC 70 Welded Pipes

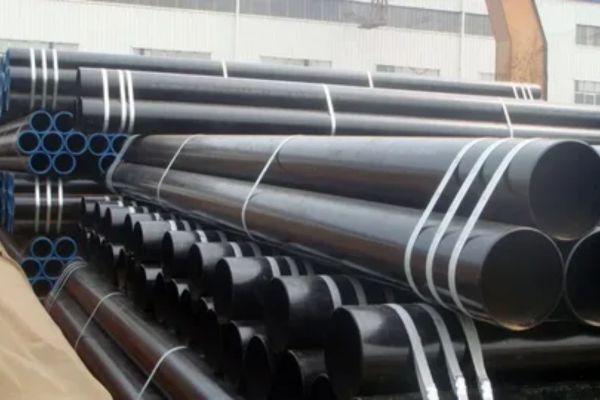

Carbon Steel A671 Gr CC 70 EFW Pipes

What is Carbon Steel A671 Gr CC 70 Pipe?

The Carbon Steel A671 Gr CC 70 Pipes are crafted from carbon steel with a carefully controlled chemical composition, typically featuring Carbon (≤0.30%), Manganese (0.60–1.00%), Phosphorus (≤0.035%), Sulfur (≤0.035%), and Silicon (≤0.30%). These pipes boast impressive mechanical properties, including a minimum yield strength of 310–375 MPa and a tensile strength of 485–620 MPa. They also provide excellent weldability, toughness, and resistance to high-pressure and high-temperature conditions, ensuring they last in demanding applications.

ASTM A671 Gr CC 70 Pipes Sizes in mm, ASME SA 671 Gr CC 70 Pipes Distributor in Alexandria, Carbon Steel A671 Gr CC 70 Pipes in Port Said, ASTM A671 Gr CC 70 Pipes Supplier in West Cairo, Carbon Steel A671 Gr CC 70 Pipes Distributor in Egypt, CS A671 Gr CC 70 Pipes Supplier in Cairo, ASTM A671 Gr CC 70 Pipes Exporter in Cairo, ASME SA 672 Gr CC 70 Pipes Manufacturer in West Cairo, Carbon Steel A671 Gr CC 70 Pipes Price List in Egypt

Carbon Steel A671 Gr CC 70 Pipe Specification

Specification	ASTM A671 /ASME SA671
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Type	EFW (ELECTRIC FUSION WELDED PIPES)
Material	A515 Gr 70
Outer Diameter Size	16″ NB To 100″ NB (Nominal Bore Size)
Wall Thickness	Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Class Designation	CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42
Length	5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
Shipment & Transportation	By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes
Standards	CC70, JIS JPI-SB49

Carbon Steel A671 Gr CC 70 Pipe Chemical Composition

Specification	Steel grade	Chemical composition						Remarks
Specification	Steel grade	C	Si	Mn	P	S	Ti	Remarks
Pipes for pressure service ASTM A671 CC70	-/A45	-/0.17	–	0.98	0.035	0.035	–	A671/ A672
	-/A50	-/0.22	–
	CA55/A55	0.28	–
	-/B55	-/0.20	0.13 ~0.45
	CB60/B60	0.24
	CB65/B65	0.28
	CB70/C70	0.31		1.30
	-/C55	-/0.18		0.55 ~0.98
	CC60/C60	0.21		0.55 ~0.98
	CC65/C65	0.24		0.79 ~1.30
	CC70/C70	0.27		0.79 ~1.30

Carbon Steel A671 Gr CC 70 Pipe Mechanical Properties

Products	Steel Grade	BASE METAL MECHANICAL COMPOSITION				Welding point tensile strength (N/mm2)	Remarks
Products	Steel Grade	Yield point (N/mm2)	Tensile Stregth (N/mm2)	Test Pieces	Elongation (%)	Welding point tensile strength (N/mm2)	Remarks
Pipes for pressure service ASTM A671 CC70	-/A45	-/165	-/310~450	–	-/30	-/310~450	A671/ A672
	-/A50	-/185	-/345~485		-/28	-/345~485
	CA55/A55	205	380~515		27	380~515
	-/B55	-/205	-/380~515		-/27	-/380~515
	CB60/B60	220	415~550		25	415~550
	CB65/B65	240	450~585		23	450~585
	CB70/B70	260	485~620		21	485~620
	-/C55	-/205	-/380~515		-/27	-/380~515
	CC60/C60	220	415~550		25	415~550
	CC65/C65	240	450~585		23	450~585
	CC70/C70	260	485~620		21	485~620

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Carbon Steel A671 Gr CC 70 Pipe Pressure Rating

Maximum Allowable Pressure (psi)
NPS	Outside Diameter	Schedule
(in)	(in)	10	20	30	STD	40	60	XS	80	100	120	140	160	XXS
1/4	0.54				7985	7985		10798	10798
3/8	0.675				6606	6606		9147	9147
1/2	0.84				6358	6358		8575	8575				10908	17150
3/4	1.05				5273	5273		7187	7187				10220	14373
1	1.315				4956	4956		6670	6670				9316	13340
1 1/4	1.66				4133	4133		5638	5638				7380	11276
1 1/2	1.9				3739	3739		5158	5158				7247	10316
2	2.375				3177	3177		4498	4498				7097	8995
2 1/2	2.875				3460	3460		4704	4704				6391	9408
3	3.5				3024	3024		4200	4200				6132	8400
3 1/2	4				2769	2769		3896	3896
4	4.5				2581	2581		3670	3670		4769		5782	7339
5	5.563				2273	2273		3303	3303		4404		5505	6606
6	6.625				2071	2071		3195	3195		4157		5318	6390
8	8.625		1420	1574	1829	1829	2307	2841	2841	3375	4085	4613	5147	4971
10	10.75		1140	1399	1664	1664	2279	2279	2708	3277	3847	4558	5128	4558
12	12.75		961	1268	1441	1560	2160	1922	2644	3244	3843	4324	5042	3843
14	14	875	1092	1313	1313	1533	2079	1750	2625	3283	3829	4375	4921
16	16	766	956	1148	1148	1531	2009	1531	2585	3157	3733	4404	4882
18	18	681	849	1192	1021	1530	2042	1361	2553	3147	3743	4252	4848
20	20	613	919	1225	919	1455	1989	1225	2526	3138	3675	4288	4824
22	22	557	835	1114	835		1949	1114	2506	3063	3619	4176	4733
24	24	510	766	1147	766	1405	1978	1021	2489	3126	3700	4210	4786
30	30	510	817	1021	613			817
32	32	478	766	957	574	1054
34	34	450	721	901	540	992
36	36	425	681	851	510	1021
42	42		583	729	438	875

Top Manufacturer and Supplier of Carbon Steel A671 Gr CC 70 Pipe in Cairo, Egypt

Aatir Steel is a top manufacturer and supplier of high-quality Carbon Steel A671 Gr CC 70 Pipe products in Cairo, Egypt. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

Carbon Steel A671 Gr CC 70 Pipes Price List in Egypt, ASTM A671 Gr CC 70 Pipes Distributor in Alexandria, Carbon Steel A519 Grade B Pipes in Port Said, Carbon Steel A671 Gr CC 70 Pipes Supplier in West Cairo, Carbon Steel A671 Gr CC 70 Pipes Distributor in Egypt, ASME SA 671 Gr CC 70 Pipes Stockist in Cairo, Carbon Steel A671 Gr CC 70 Pipes Supplier in Cairo, Carbon Steel A671 Gr CC 70 Pipes Exporter in Cairo, ASTM A671 Gr CC 70 Pipes Sizes in mm, CS A671 Gr CC 70 Pipe Manufacturer in West Cairo

Types of Carbon Steel A671 Gr CC 70 Pipe

CS A671 Gr CC 70 Pipes Exporter in Alexandria, ASTM A671 Gr CC 70 Pipes Size Chart, Carbon Steel A671 Gr CC 70 Pipes Price in Port Said, Carbon Steel A519 Grade B Pipes Weight Chart, ASTM A671 Gr CC 70 Pipes Thickness, Carbon Steel A519 Pipe Supplier in Egypt, CS A671 Gr CC 70 Pipes Stockist in Cairo, ASTM A671 Gr CC 70 Pipes Exporter in Egypt, Carbon Steel A671 Gr CC 70 Pipes Price List in Cairo, Carbon Steel A671 Gr CC 70 Pipes Supplier in Cairo, Carbon Steel A671 Gr CC 70 Pipes Exporter in West Cairo

Uses of Carbon Steel A671 Gr CC 70 Pipe

You’ll find Carbon Steel A671 Gr CC 70 Pipes commonly used in high-pressure pipelines, boilers, heat exchangers, and chemical processing systems. Their remarkable mechanical strength, precise dimensions, and toughness make them ideal for transporting fluids and gases under extreme conditions. Aatir Steel’s A671 Gr CC 70 Pipes guarantee reliable performance, a long service life, and consistent quality, making them the go-to choice for industrial, mechanical, and construction projects that require durable carbon steel piping solutions.
