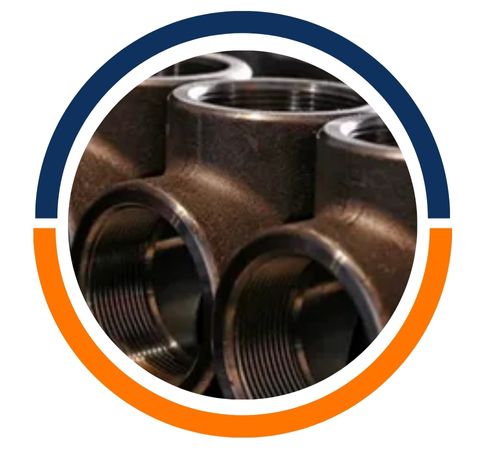

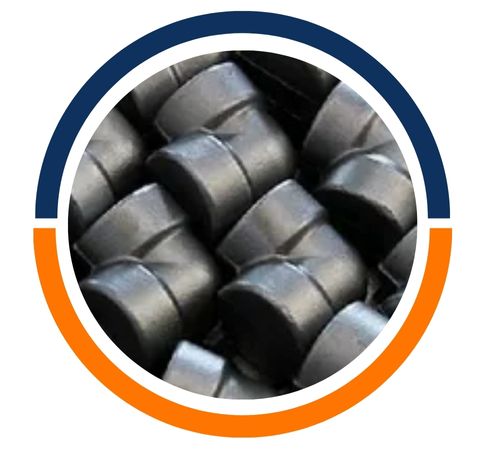

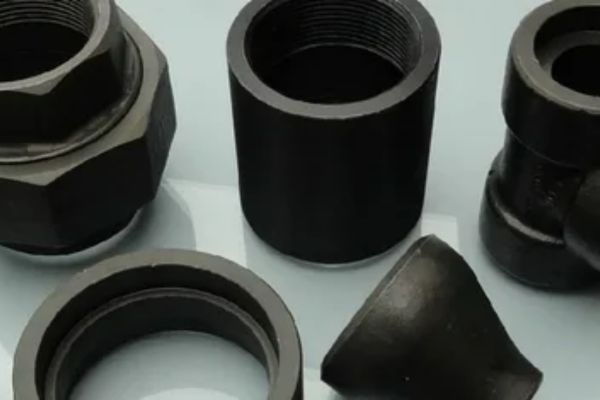

Aatir Steel stands out as a top-notch manufacturer and supplier located in Cairo, Egypt, with a focus on high-quality Carbon Steel A105 Forged Fittings. These fittings are crafted to adhere to strict international standards, guaranteeing outstanding strength, durability, and reliability for even the toughest industrial applications. Renowned for their precise dimensions and excellent mechanical properties, Aatir Steel’s A105 forged fittings are perfect for high-pressure systems and essential piping networks. With a strong commitment to quality, innovation, and customer satisfaction, the company has built a solid reputation as a reliable provider of carbon steel solutions across various industries, including oil and gas, petrochemical, power generation, and construction.
When it comes to composition, Carbon Steel A105 Forged Fittings mainly consist of carbon (up to 0.35%), manganese (0.60–1.05%), phosphorus (up to 0.035%), sulfur (up to 0.04%), and silicon (0.10–0.35%). They boast a minimum tensile strength ranging from 485 to 620 MPa and a yield strength of 250 MPa. These fittings are known for their excellent toughness, ductility, and weldability, making them ideal for high-pressure and high-temperature scenarios. The well-balanced chemical makeup ensures they are durable, resistant to deformation, and consistently perform well under challenging operating conditions.
Standard : ASTM A105 / ASME SA 105
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

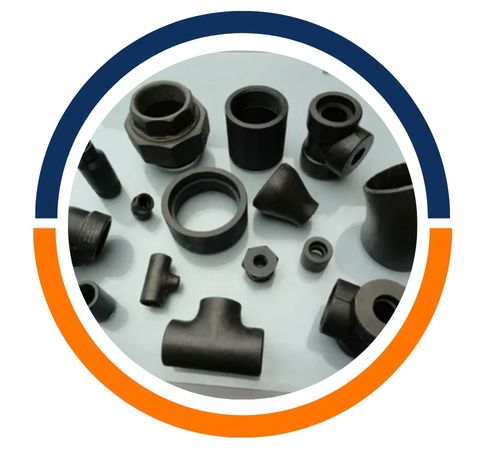

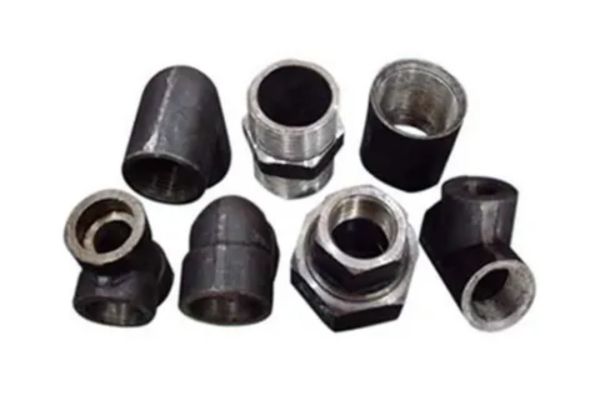

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

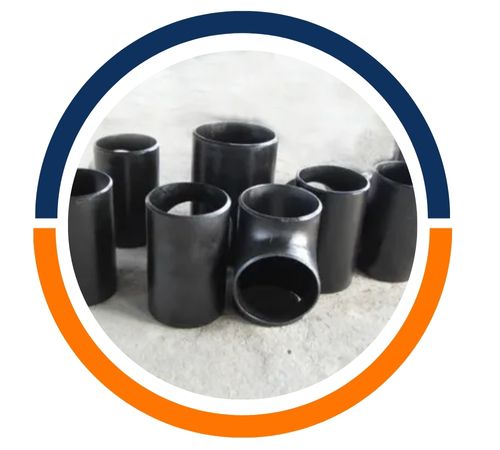

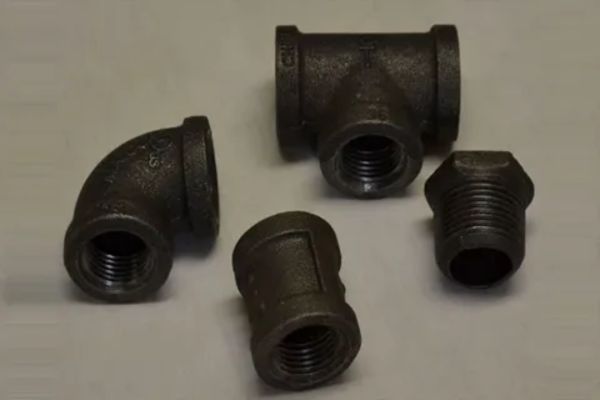

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS A105 Forged Screwed Elbows, Street Elbow, A105 Carbon Steel Screwed Unequal Tee, Steel Straight Tee, Carbon Steel A105 Reducing Coupling, A105 Carbon Steel Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS A105 Threaded Bushing, A105 Carbon Steel Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel A105 Barrel Nipples, CS A105 Forged Threaded Boss, A105 Carbon Steel Forged Hex Head Bull Plugs |

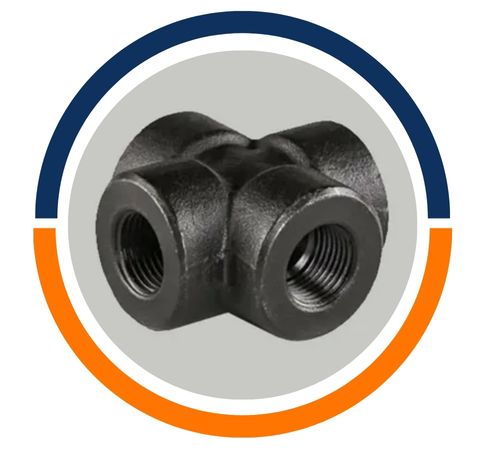

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel A105 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS A105 caps, 3000LB Socket Weld Cross |

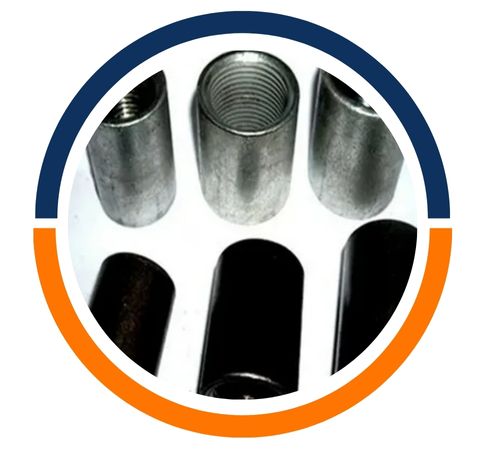

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS A105 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel A105 Coupling |
Carbon Steel A105 Forged Fittings find extensive use in piping systems for oil and gas, petrochemical plants, refineries, and power generation facilities. They are perfect for connecting pipes, valves, pumps, and other critical equipment in high-pressure and high-temperature settings. Additionally, these fittings are utilized in water supply, chemical processing, and various industrial applications. Thanks to their strength, reliability, and adherence to ASTM A105 standards, A105 forged fittings guarantee safe, long-lasting, and efficient operation in both onshore and offshore projects.
