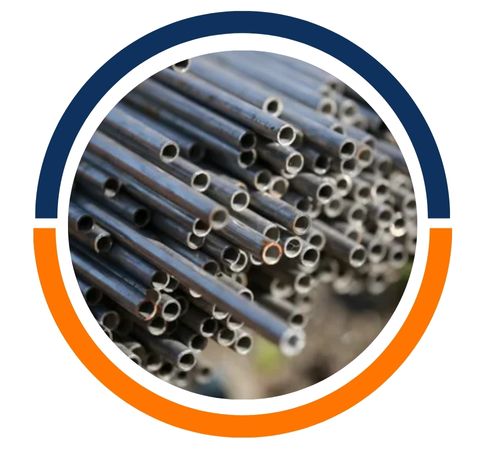

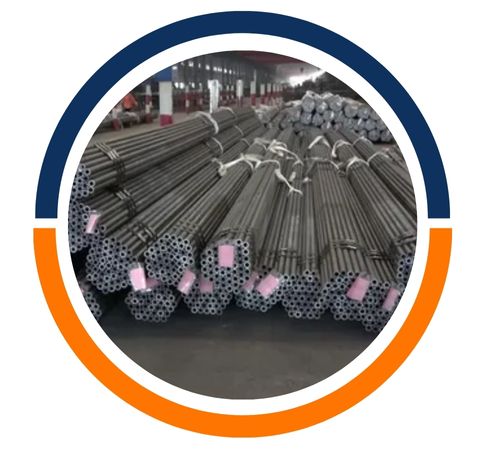

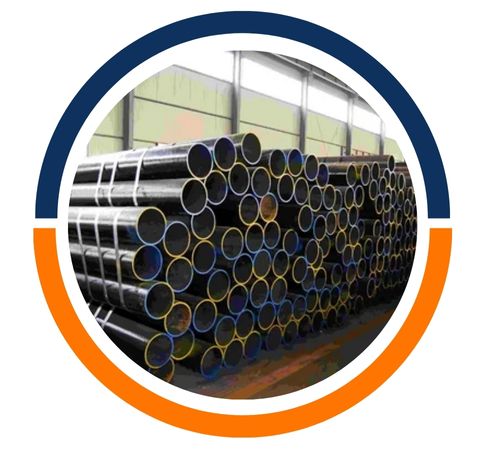

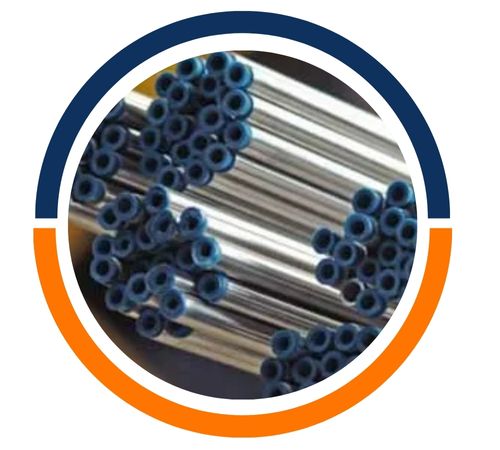

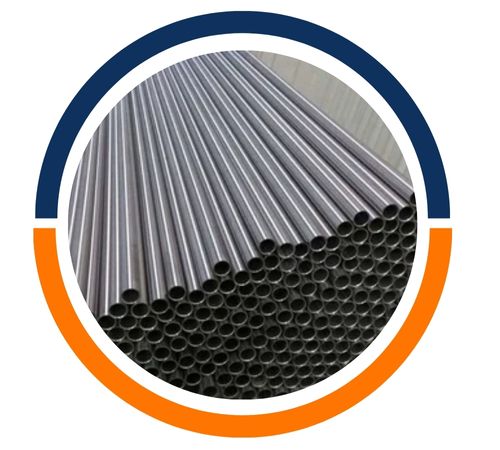

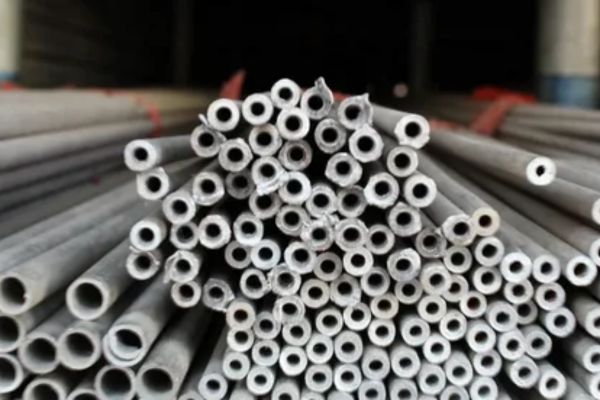

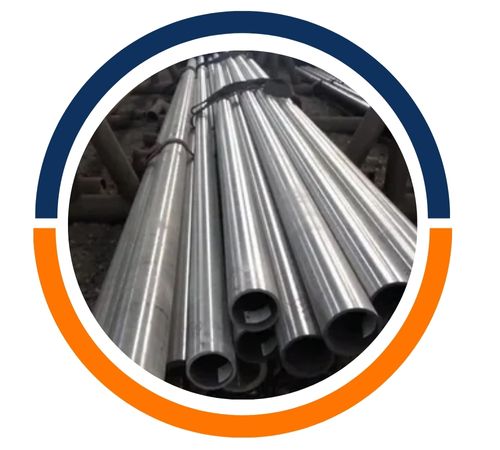

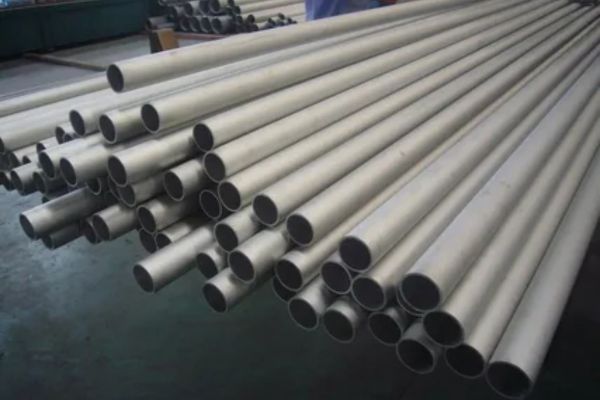

Aatir Steel, based in Cairo, Egypt, stands out as a top manufacturer and supplier of Alloy Steel T92 Tubing, designed to handle the tough demands of high-temperature and high-pressure settings. Following ASTM A213 specifications, T92 tubing is well-known for its exceptional creep strength, resistance to oxidation, and long-lasting structural integrity under thermal stress. Aatir Steel employs cutting-edge production methods and rigorous quality control to guarantee that its T92 tubes consistently perform well in critical applications like power generation and petrochemical processing. These tubes are perfect for clients looking for reliable and efficient tubing solutions that adhere to international performance standards.
Alloy Steel T92 Tubing is a robust ferritic-martensitic alloy, primarily made up of chromium (8.5–9.5%) and molybdenum (0.3–0.6%), along with other alloying elements such as tungsten, vanadium, niobium, nitrogen, carbon, and manganese. This carefully crafted composition boosts the material’s creep resistance, tensile strength, and oxidation resistance at high temperatures. Typically, T92 tubing boasts a minimum tensile strength of 620 MPa and a yield strength of 440 MPa, along with impressive hardness and ductility. The alloy undergoes controlled heat treatment processes, including normalizing and tempering, to ensure stability during extended high-temperature service in essential boiler and piping systems.
| SA213 T92 Tube Standard | ASTM A213 T92, SA213 T92 (with IBR Test Certificate) |
|---|---|
| SA213 T92 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T92 Tube Thickness | 3-12mm |
| SA213 T92 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T92 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| SA213 T92 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T92 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T92 Tube Length | Standard Double & In Cut length also. |
| SA213 T92 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T92 Boiler Tube, SA213 T92 Heater Tube, SA213 T92 Heat Exchanger Tube |
| SA213 gr T92 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T92 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T92 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T92 Tubing in Cairo, Egypt. We offer top-grade steel materials and a broad range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source only the finest raw materials to ensure superior performance in industrial applications with demanding specifications. Contact us today for all your Alloy Steel T92 Tubing needs!
Alloy Steel T92 Tubing finds extensive use in supercritical and ultra-supercritical power plants, particularly in boiler tubes, reheater tubes, and superheater components where high thermal and mechanical stresses are a constant challenge. Its outstanding resistance to thermal fatigue, oxidation, and creep deformation makes it an excellent choice for heat exchangers, pressure vessels, and other critical applications.
Aatir Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cairo, Egypt.
