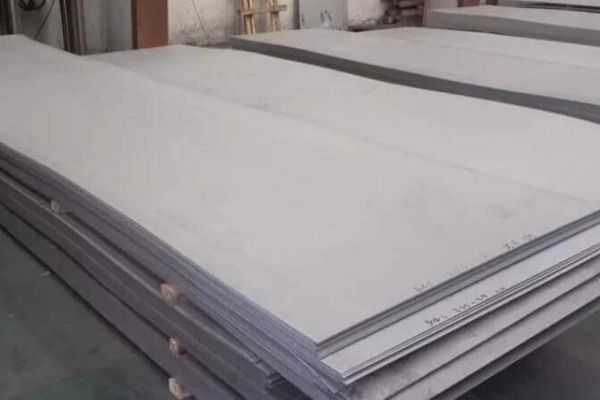

Aatir Steel, located in Cairo, Egypt, is a reliable manufacturer and supplier of top-quality ABS EH36 Shipbuilding Steel Sheets and Plates. With a strong focus on quality, precision, and customer satisfaction, Aatir Steel provides high-performance steel solutions specifically designed for the maritime and offshore sectors. Our ABS EH36 steel plates are celebrated for their remarkable strength, excellent weldability, and durability, even in the toughest marine environments. With our industry expertise and dependable supply chain, Aatir Steel guarantees timely deliveries and technical support, adhering to international standards for shipbuilding and structural applications throughout Egypt, the Middle East, and beyond.
ABS EH36 Shipbuilding Steel Sheets and Plates are engineered to deliver high strength and outstanding toughness. Their typical chemical makeup includes carbon (≤0.18%), manganese (0.90–1.60%), silicon (0.10–0.50%), phosphorus (≤0.035%), and sulfur (≤0.035%), along with optional elements like nickel, chromium, and copper. The mechanical properties boast a minimum yield strength of 355 MPa and tensile strength ranging from 490 to 620 MPa. They also offer good impact resistance, particularly in low temperatures, meeting the Class EH36 standards established by the American Bureau of Shipping (ABS) for high-tensile shipbuilding steel.
STANDARD: ASTM A131, ASME SA131
PLATES QUALITY: EH36(Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| Grade EH36 | C | Si | Mn | P | S | V | Al | Cr | Cu | Mo | Nb | Ni | Ti |
| 0.180 | 0.1-0.50 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.2 | 0.35 | 0.08 | 0.02-0.05 | 0.4 | 0.02 |
| Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Charpy V Impact Test | |
| Grade ABS EH36 | t≤50 | Min 355 Mpa | 490-620 Mpa | 21% | 24J | 34J |
| 50＜t≤70 | Min 355 Mpa | 490-620 Mpa | 21% | 27J | 41J | |
| 70＜t≤100 | Min 355 Mpa | 490-620 Mpa | 21% | 34J | 50J | |
| Grade | DNV | GL | LR | BV | CCS | NK | KR | RINA |
| ABS EH36 | NV E36 | GL-E36 | LR/EH36 | BV/EH36 | CCS/E36 | K E36 | R E36 | RI/E36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aatir Steel is one of the most prominent manufacturers and suppliers of superior quality ABS EH36 Shipbuilding Steel Sheet and Plates in Cairo, Egypt. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| EH36 | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
ABS EH36 Shipbuilding Steel Sheets and Plates are extensively utilized in constructing both naval and commercial vessels, including hulls, decks, and offshore structures such as oil rigs and platforms. Their high strength and exceptional resistance to harsh marine conditions make them perfect for critical structural components that require long-lasting performance and reliability. Additionally, these plates are well-suited for fabrication in shipyards, offshore engineering projects, and heavy machinery that demands corrosion resistance and high load-bearing capacity. Aatir Steel provides EH36 plates customized to meet the rigorous demands of marine engineering, ensuring safety and structural integrity in every application.
